ADJUSTABLE 4-20mA OUTPUT SIGNAL GENERATOR

Product

group

FF

Y24D4-20i, Y24A4-20i, Y110A4-20i, Y230A4-20i

Features

  • Din Rail Mounted
  • Separate Input & Output LED Indication
  • Input Voltage 24VDC, 24VAC, 110VAC, 230VAC
  • Output 4-20mA Adjustable
  • CE Marked
  • RoHS Compliant
Download data sheet

A conveniently packaged Din rail mounted AC or DC voltage input to an adjustable 4-20mA output module. Designed for process control systems with “HAND / OFF / AUTO” applications. For example, when in “HAND” a signal anywhere between 4mA and 20mA needs to be forced into instrumentation equipment rather than a default 20mA signal.

The product is also useful for system testing and commissioning applications. The product can be specified with either a 24VDC, 24VAC, 110VAC or 230VAC supply voltage. In the case of 24VDC isolation between the supply voltage and the output is via an internal DC to DC converter. With an AC supply voltage isolation is via an internal transformer.

The output is an adjustable 4-20mA signal, via a front mounted potentiometer. A healthy supply voltage is indicated via an illuminated green LED and a healthy output via an illuminated red LED.

Input Supply

Nominal Input:
24VDC
24VAC, 110VAC, 230VAC

Output: 4-20mA adjustable

Max Output Load: 750 Ohms

Supply Healthy: Via Green LED

Output Healthy: Via Red LED

Output Voltage Regulation: <0.5%

General

Operating Temperature: -20°C to +65°C

Storage Temperature: -20°C to +65°C

Humidity: 95%Rel H max

Isolation Voltage I/P-O/P: 1500V for 1 min

CE marked: Yes

In accordance with:
EN61000-6-1: 2007
EN61000-6-3: 2007
EN61010-1: 2002

Housing material: Polycarbonate, Auto extinguishable to UL 94 V-0

RoHS Compliant: Yes

TYPE

Y24D4-20i (24VDC)
Y24A4-20i (24VAC)
Y110A4-20i (110VAC)
Y230A4-20i (230VAC)

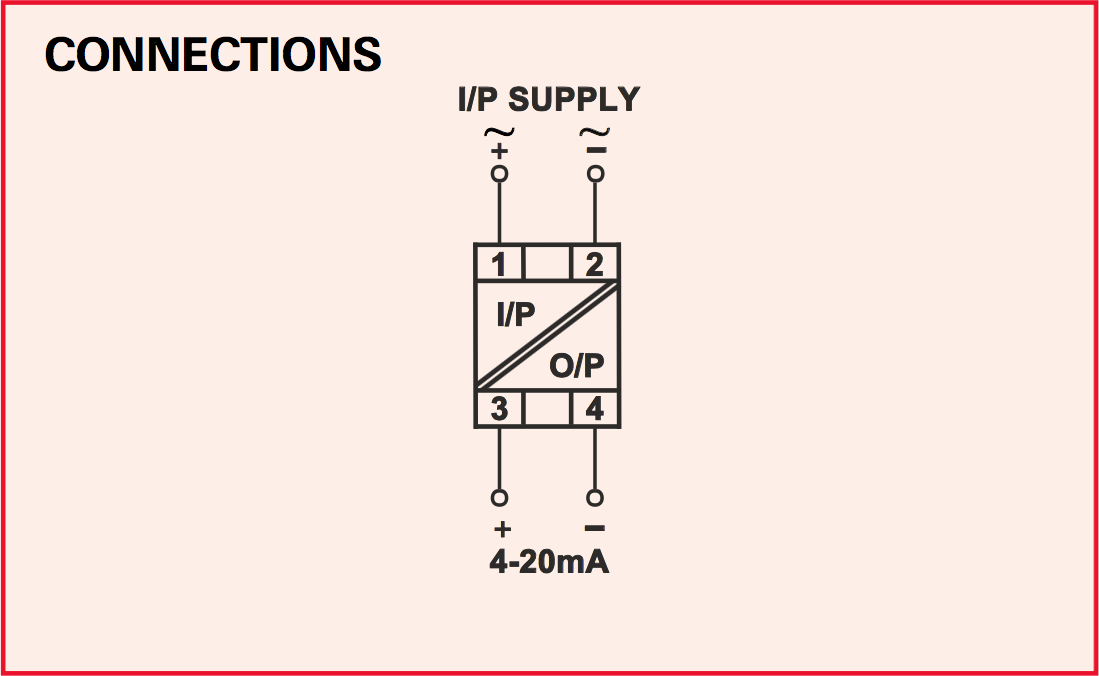

Y24D4-20i-Connections.png#asset:3373

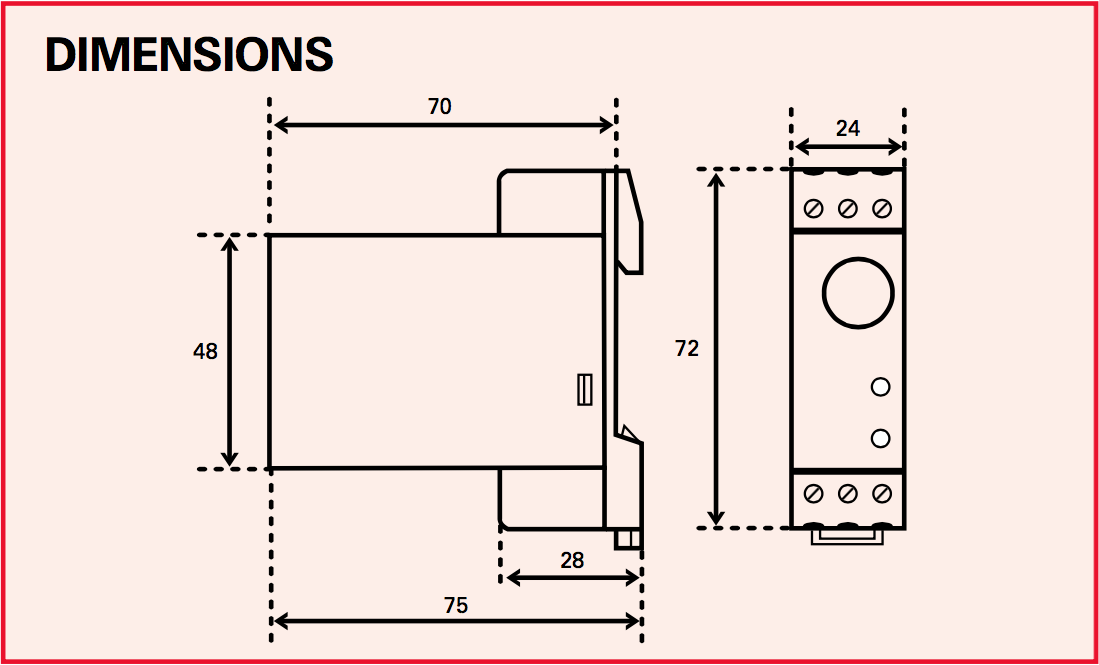

Y24D4-20i-Dimensions.png#asset:3374
