FOXTAM SPLIT CORE CURRENT TRANSFORMERS
Product
group
V
FOX.SC23
Features
- Protected terminals
- Integral cable / bus-bar pinch screws
- Primaries from 100 Amps to 400 Amps

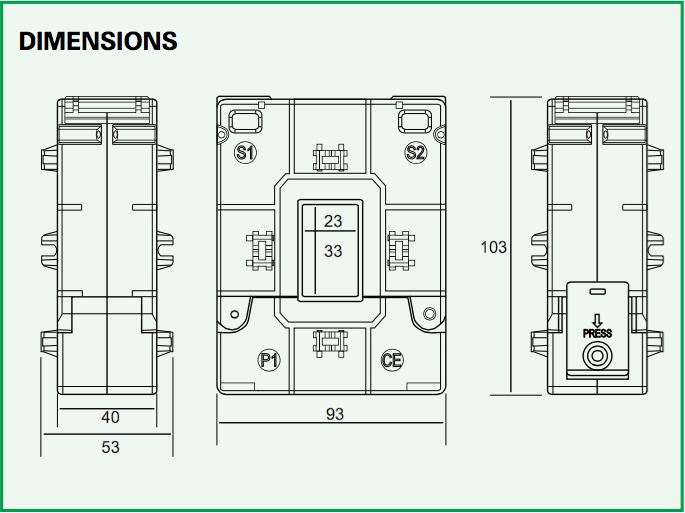

- Max aperture size 23x33mm
- Max overall dimensions 93x103mm
- Class 1 (class 0.5 on request, some ratios)
- 1 Amp or 5 Amp secondaries
P/No.
FOX.SC23 100/5 Class 1 1.5VA
FOX.SC23 150/5 Class 1 1.75VA
FOX.SC23 200/5 Class 1 2.5VA
FOX.SC23 250/5 Class 1 3.75VA
FOX.SC23 300/5 Class 1 5VA
FOX.SC23 400/5 Class 1 6.25VA
1 Amp secondaries available to special order, along with class 0.5 on some ratios, please consult our sales office.
