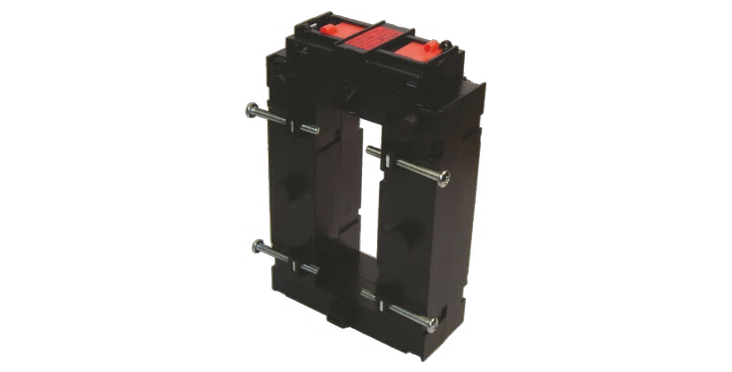

FOXTAM CURRENT TRANSFORMERS
Product
group
V
FOX105.38
Features
- Bus-bar mounted
- Built in sliding sealable terminal covers
- Transformer size 156x98mm
- Max bus-bar size 105x38mm
- 1 Amp or 5 Amp secondaries
Moulded case rectangular current transformers, for mounting on vertical bus-bars with primary currents from 800 Amps to 4000 Amps. With built in sliding sealable terminal covers.
P/No.
FOX105.38 800/5 Class 1 15VA
FOX105.38 1000/5 Class 1 15VA
FOX105.38 1200/5 Class 1 15VA
FOX105.38 1500/5 Class 1 15VA
FOX105.38 1600/5 Class 1 15VA
FOX105.38 2000/5 Class 1 15VA
FOX105.38 2500/5 Class 1 15VA
FOX105.38 3000/5 Class 1 15VA
FOX105.38 4000/5 Class 1 15VA
All of the above ratios are available as Class 0.5 and Class 0.2 to special order, please consult our sales office.
