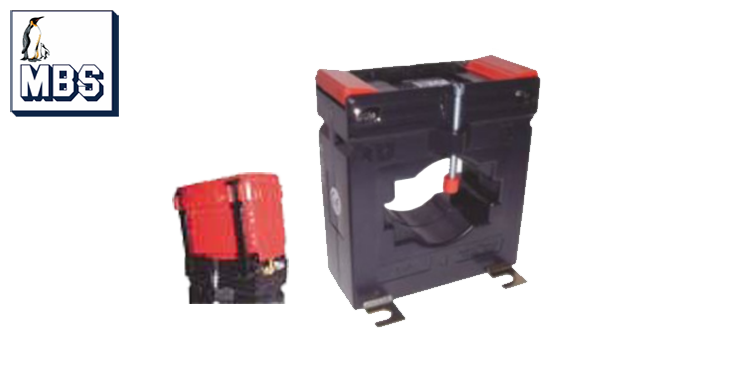

MBS MOULDED CASE CT - WITH UNIQUE TRANSDUCER OPTION

Product

group

W

ASK61.4

Features

  • Foot or bus-bar mounted
  • Snap fit secondary terminal covers
  • Insulated ends to bus-bar pinch screws
  • Transformer width 95mm
  • Max conductor size 44mm Dia.
  • Max bus-bar size 63x10mm or 2x 50x10mm
  • Primary ranges from 200 Amps to 1600 Amps
  • 1 Amp or 5 Amp secondaries
Download data sheet

ASK61.4-Ratios.png#asset:3886

All ASK61.4 models available with 1 Amp or 5 Amp secondaries. Above ratios available as Class 0.5 & Class 0.2 to special order, please consult sales office for information.

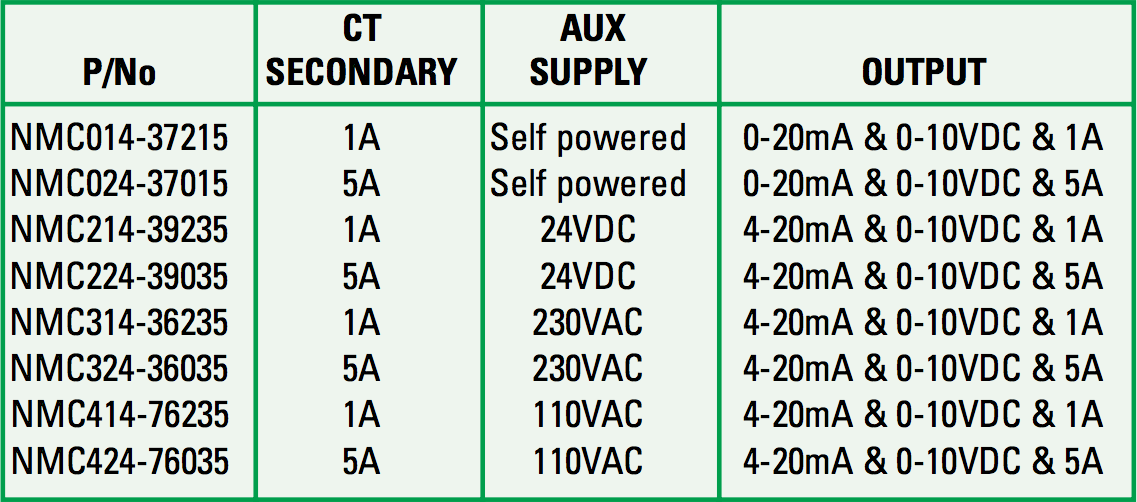

ASK61.4-NMC.png#asset:3885

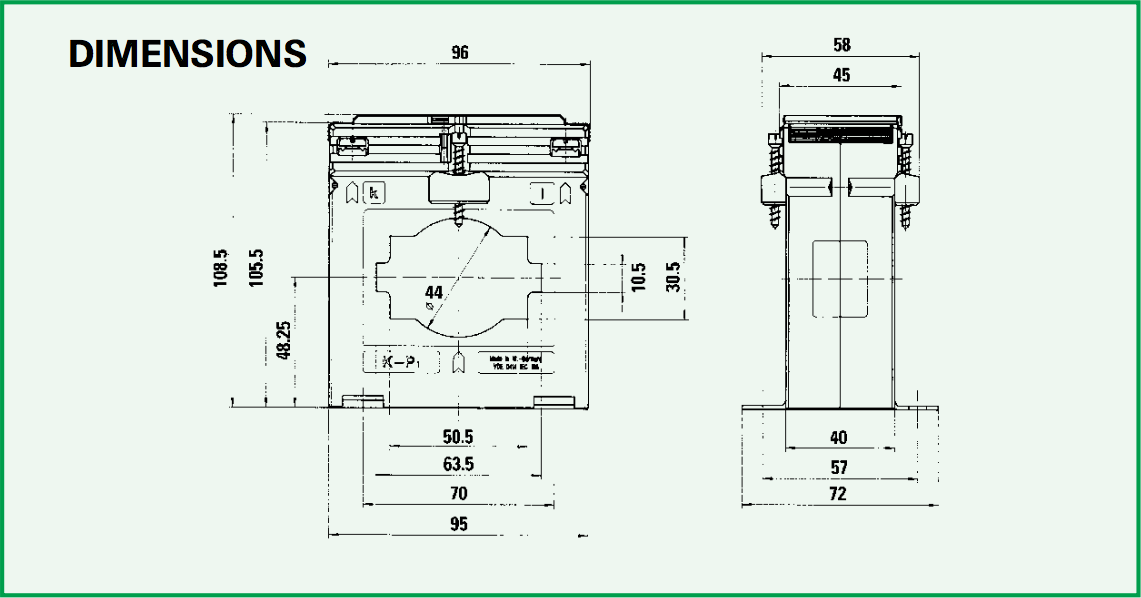

ASK61.4-Dimensions.png#asset:3884
