SELF POWERED AC VOLTAGE OVER & UNDER CONTROL RELAYS

Product

group

D

YWROUV (spco), YWR2OUV (dpco), YWROUV2 (1 x spco over & 1 x spco under)

Features

  • Din rail mounted
  • Self powered no separate auxiliary supply required
  • AC over & under voltage control
  • Optional adjustable time delay
  • Nominal voltages 24VAC to 440VAC
  • Multi LED indication
Download data sheet

Din rail mounted AC self powered voltage control relays (no separate auxiliary supply required) for the combined monitoring of both over and under voltage levels. Available only in a din rail package with nominal voltages from 24VAC to 440VAC, an option adjustable time delay 0.1 to 10 secs “T” can be specified as a delay on tripping timer, (not possible on the YWROUV2).

YWROUV & YWR2OUV - SPCO and DPCO output devices respectively, with separate over and under voltage control levels set via potentiometers +20% and -30% against the nominal voltage. The output relay will be energised when the voltage is within the set points. Deviation above or below the setpoints will cause the output relay to deenergise, plus any optional time delay set. Total loss of supply will cause an immediate de-energisation. On the voltage returning to with the set levels +2% fixed hysteresis the output relay will re-energise. A green LED illuminated indicates a supply is present and a red LED illuminated indicates the output relay is in an energised state.

YWROUV2 - As above but with a separate relay output for over voltage and a separate relay output for under voltage, in a healthy state both relays are energised. R1 is designated as the over voltage relay and will de-energise if an over voltage level is reached. R2 is designated as the under voltage relay and will de-energise if an under voltage level is reached. The unit featured three LED indicators, green for a supply voltage present and individual red LED’s for R1 and R2, a de-energisation will cause the respective LED to extinguish.

Supply & Measuring

Nominal supply tolerance:
-35% & +20%
(+25% for 1 hour max)

Independent adjustable set levels: -30% & +20%

Isolation: Via transformer

Power consumption: 3VA max

Hysteresis: Fixed 2%

Repeat accuracy:
±2% at constant ambient
±5% across temperature range

Response time:
100 mSec on make
0.1-10sec adjustable optional (not YWROUV2)

Relay outputs:

Output contacts:
SPCO & 2 x SPCO 10Amps/250V AC1
DPCO 8Amps/250V AC1

Mechanical life: 30 Million ops

Electrical life: 200K ops at max rated load

General:

Operating temperature: -20°C to +65°C

Storage temperature: -20°C to +65°C

Max cable size: 4mm

CE marked: Yes

In accordance with:
EN61000-6-1: 2007
EN61000-6-3: 2007
EN61010-1: 2002

Housing material: Polycarbonate, Auto extinguishable to UL 94 V-0

TYPE

YWROUV (Din rail SPCO)
YWR2OUV (Din rail DPCO)
YWROUV2 (Din rail 2 x SPCO)

TIME DELAY

T*

COIL VOLTAGE

440VAC
415VAC
400VAC
380VAC
230VAC
110VAC
48VAC
24VAC

* Insert T if an adjustable 0.1-10sec time delay is required (not available on type YWROUV2).

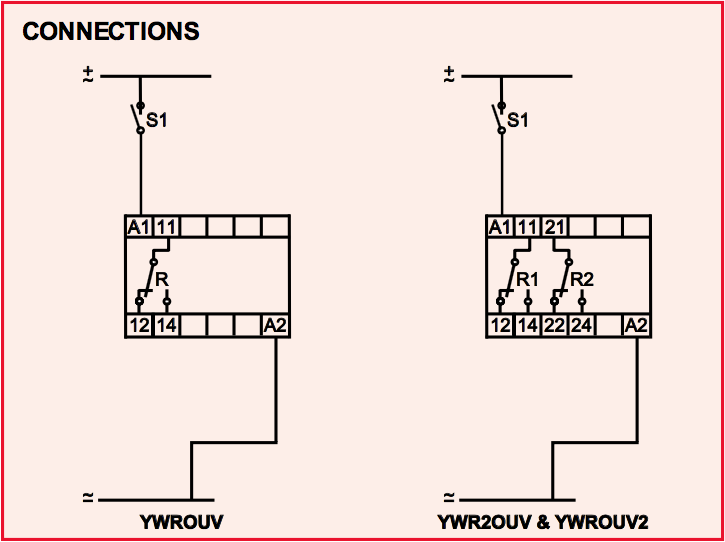

YWROUV-Connections.png#asset:3407

Dimensions-YW.png#asset:3270

YWROUV-Function.png#asset:3408
