SINGLE MODULE DIGITAL PROGRAMMABLE TIME SWITCH

A Din rail mounted single module width, (18mm), programmable digital time switch. Designed for the more simple applications, but still with 6 “ON” and 6 “OFF” programmable times that can be if desired “blocked” up for multiple days, which then only counts as one instruction. The time switch can be utilised for both daily and weekly applications. The contact output is a single Normally Open volt free contact rated at 16 Amps / 230VAC resistive or 2 Amps inductive. The time switch has a simple but clear LCD display and the programming buttons are discretely behind a hinged lift up front, which has the option to be sealed shut. A battery backup of 100 hours will hold the programme in the event of an auxiliary supply failure and a manual override is also featured. A choice of auxiliary supply voltages are available 24VDC, 24VAC, 110VAC and 230VAC.

Number of channels: 1

Auxiliary supplies: 24VDC, 24VAC, 110VAC, 230VAC

Output contact: 1NO

Contact rating:
16 Amps / 230VAC (resistive)
2 Amps / 230VAC (inductive)

Shortest switching: 1 minute

Accuracy: ± 2.5 seconds per day

Programme:
Max 6 “ON” & 6 “OFF”
Can be “BLOCK” programmed

Display: LCD with 4mm high characters

Battery reserve: 100 hours

Manual override: Yes

CE marked: Yes

Terminals: 2.5mm² max

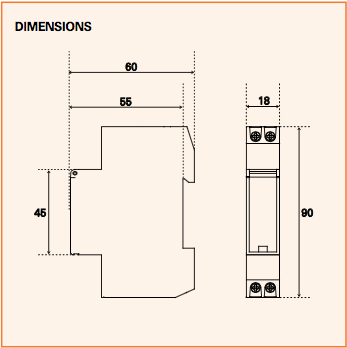

Dimensions mm: 90H x 18W x 55D

TYPE - SUPPLY VOLTAGE

FOX.TSD-1 24VDC, 24VAC, 110VAC, 230VAC* (*specify)
