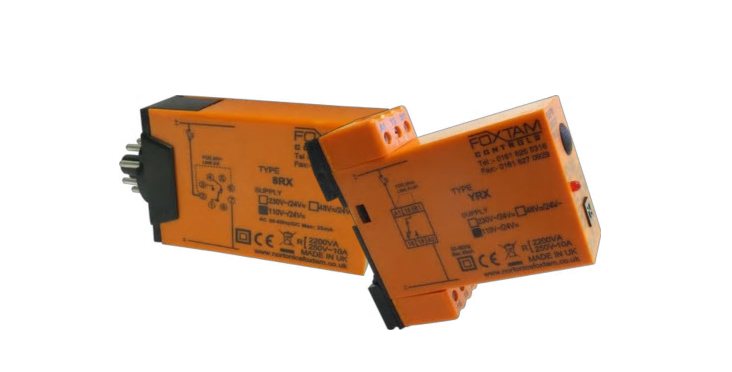

Simple din rail mounted or 8 & 11 pin plug in fleeting contact relays, available SPCO and with a DPCO option on the 8 & 11 pin plug in units. The units have four selectable modes of operation changed via a dip switch on the top of the relay, the time of the fleeting contact is always fixed at 0.5 secs. The four modes of operation are:
1. Pulse on connection of coil supply
2. Pulse on removal of coil supply
3. Pulse on both connection and removal of coil supply
4. Unit disabled
Ideal applications for fleeting contact relays include the resetting of circuits and systems on initial “power up” or “power down”.
Supply & measuring:
Supply voltage tolerance: ±15%
Frequency: 50/60Hz
Max power consumption: 3VA
Timing:
Timing: Fixed at 0.5sec ±20%
Min supply on time: 1sec
Reset time: 2secs
Relay outputs:
Output contacts:
SPCO units 10Amps/250V AC1
DPCO units 8Amps/250VAC1
Mechanical life: 30 Million ops
Electrical life: 200K ops at max rated load
General:
Operating temperature: -20°C to +65°C
Storage temperature: -20°C to +65°C
Max cable size: 4mm
CE marked: Yes
In accordance with:
EN61000-6-1: 2007
EN61000-6-3: 2007
EN61010-1: 2002
Housing material: Polycarbonate, Auto extinguishable to UL 94 V-0
TYPE
YRX(Din rail SPCO)
8RX(18 pin SPCO)
11RX(11 pin SPCO)
8R2X(8 pin DPCO)
11R2X(11 pin DPCO)
COIL VOLTAGE
230V AC
110V AC
48V AC/DC
24V AC/DC
230V AC & 24V AC/DC*
110V AC & 24V AC/DC*
48V AC/DC & 24V AC/DC*
*SPCO versions only
