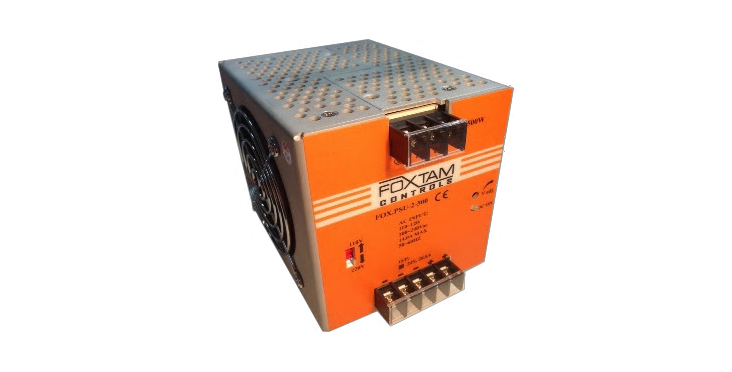

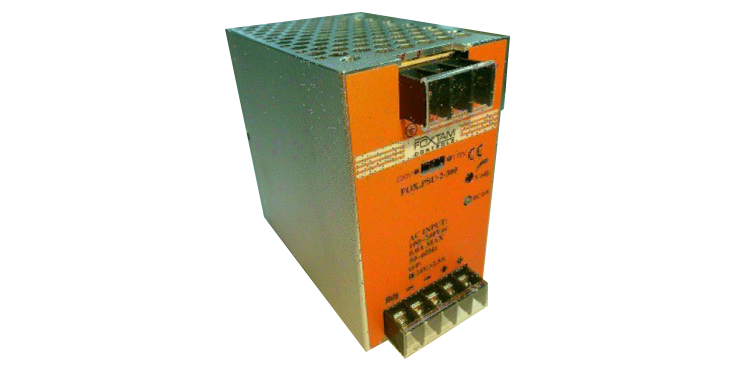

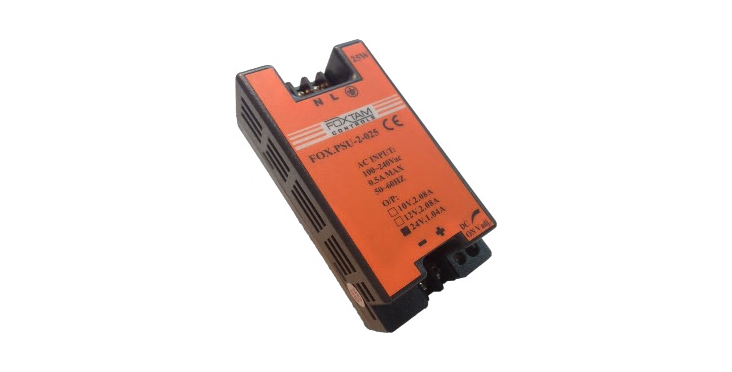

A range of din rail mounted switch mode power supplies in either 10VDC, 12VDC or 24VDC output voltage, that is also adjustable by +/-10%. The FOX.PSU-2 range of power supplies are of very high quality with a MTBF figure (Mean Time Between Failure) of between 26 and 34 years. The power supplies feature built in short circuit and over load protection with auto reset. The smaller output power supplies have a universal primary voltage of between 100-240VAC, whilst the larger output units are selectable via a switch 115V or 240VAC.
Input:
Primary voltage:
100-240VAC universal (25W & 50W)
100-120VAC & 200-240VAC switchable (100W, 150W, 300W & 500W versions)
Frequency: 47-63Hz
Tolerance: -15% to +10%
Output:
Indication: Via green LED
Voltage adjustment: Via potentiometer +/-10%
Voltage tolerance: +/-1% max with 0-100% load
Voltage linearity: +/-1% max with 0-100% load
Load influence: +/-1& max with 0-100% load
Start up time: Max 3 secs
Off time: Max 13 mSec
Short circuit protect: Yes, with auto reset
Ripple 10VDC, 12VDC: 25W/120mV, 50W/100mV, 150W/120mV
Ripple 24VDC: 25W/150mV, allothers240mV
General:
Operating temperature: -15°C to +50°C
Storage temperature: -20°C to +80°C
Humidity: 5-95% RH
Dielectric strength: 2KV for 1min, between input, output & housing
Terminals: Screw terminals max 2 x 2.5mm cable
CE Marked: Yes
Continual use: Yes
Output 10VDC / 2.5 Amps
Primary voltage 100-240VAC universal
Adjustable output +/-10%
LED indication
Output 12VDC / 2.08 Amps
Primary voltage 100-240VAC universal
Adjustable output +/-10%
LED Indication
Output 12VDC / 4.2 Amps
Primary voltage 100-240VAC universal
Adjustable output +/-10%
Protected terminals
LED indication
Output 12VDC / 12.5 Amps
Primary voltage 100-120VAC & 200-240VAC switchable
Adjustable output +/-10%
Protected terminals
LED indication
Output 24VDC / 1.04 Amps
Primary voltage 100-240VAC universal
Adjustable output +/-10%
LED indication
Output 24VDC / 2.1 Amps
Primary voltage 100-240VDC universal
Adjustable output +/-10%
Protected terminals
LED indication
Output 24VDC / 4.2 Amps
Primary voltage 100-120VAC & 200-240VAC switchable
Adjustable output +/-10%
Protected terminals
LED indication
Output 24VDC / 6.25 Amps
Primary voltage 100-120VAC & 200-240VAC switchable
Adjustable output +/-10%
Protected terminals
LED indication
Output 24VDC / 12.5 Amps
Primary voltage 100-120VAC & 200-240VAC switchable
Adjustable output +/-10%
Built in cooling fan
Protected terminals
LED indication
Output 24VDC / 20.8 Amps
Primary voltage 100-120VAC & 200-240VAC switchable
Adjustable output
Built in cooling fan
Protected terminals
LED indication
