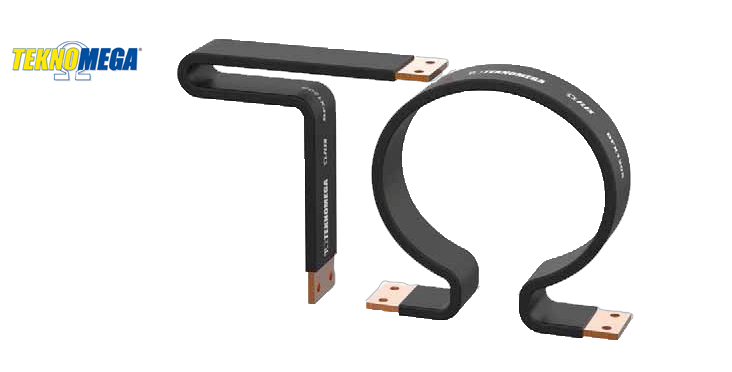

Teknomega flexible multi laminate copper bus-bars are manufactured of red copper laminates (Cu ETP) coated with an extruded PVC insulation which gives excellent electrical insulation even in the presence of aggressive temperatures and environments. Supplied in 2 metre lengths, flexible bus-bars is an ideal alternative to cable or rigid copper bars in the connection of electrical devices, especially the handling of higher currents within a control panel environment rather than a full blown switchboard.
*The insulation thickness is 2mm, therefore the maximum width including insulation increases by 4mm
**Reference example BFX1100 5x24x1 = 5 laminates of 24mm width and 1mm thickness
***Other temperature rise current figures of between 20°C and 65°C available on request
Conductor
Material: Electrolytic copper Cu-ETP
Purity: 99.9%
Insulation
Material: Self extinguishing PVC UL94-VO
Thickness: 2mm
Finished Product
Dielectric rigidity: 20KV/mm
Max rated voltage: 1000VAC / 1500VDC
Working Temp. range: -40°C to +105°C
Approvals
Calculations to: IEC 61439-1
UL file No: E300607
