MBS MOULDED CASE CT - WITH UNIQUE TRANSDUCER OPTION

Product

group

W

ASK412.4

Features

  • Din rail, bus-bar or foot mounted
  • Snap fit secondary terminal covers
  • Insulated ends to bus-bar pinch screws
  • Transformer width 70mm
  • Max conductor size 30.5mm Dia.
  • Max bus-bar size 40x12mm or 30x15mm
  • Primary ranges from 50 Amps to 800 Amps
  • 1 Amp or 5 Amp secondaries
Download data sheet

ASK412.4-Ratios.png#asset:3876

All ASK412.4 models available with 1 Amp or 5 Amp secondaries. Some of the above ratios available as Class 0.5 to special order, please consult sales office for information.

Spare Din rail mounting clips available P/No. 55012

ASK412.4-NMC.png#asset:3875

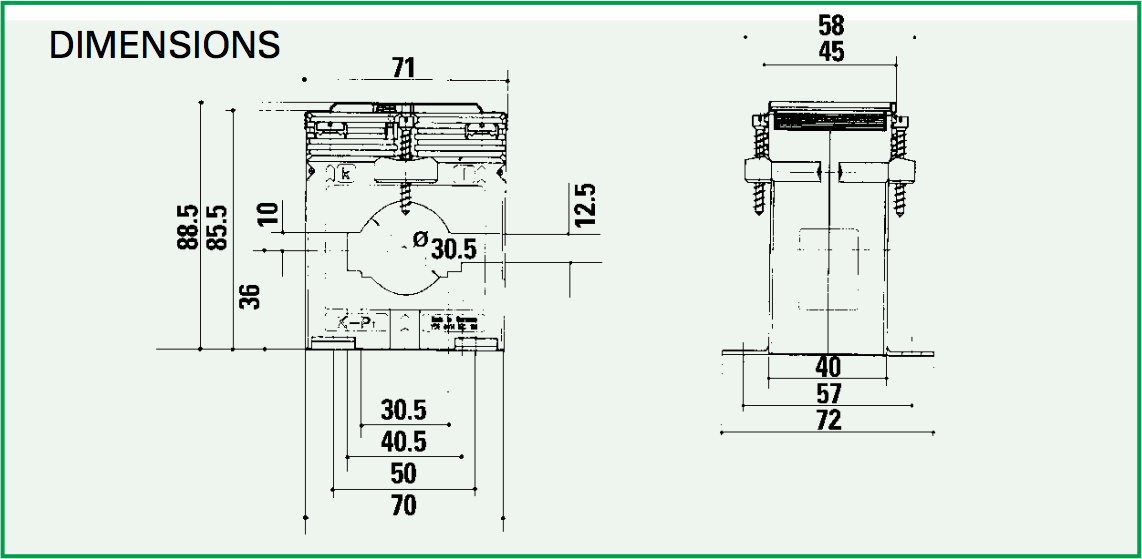

ASK412.4-Dimensions.png#asset:3874
