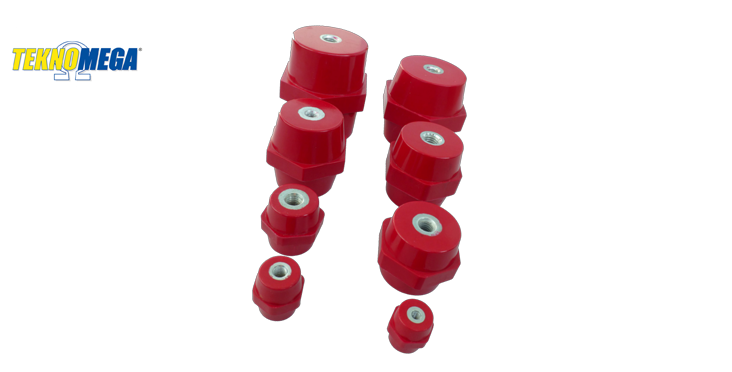

Teknomega “stand off” insulators are used as insulating supports for live conductors to ensure excellent electrical insulation capability. They can be utilised for many applications from the support of small live bus-bars and the mounting and/or support of electrical equipment, or for general applications where increased rigidity, stiffening or spacing is required. Available in a selection of sizes, all Teknomega insulators pass stringent tests with regards to both mechanical and electrical parameters.
Materials
Material: Thermosetting polyester reinforced with 20% fibreglass
Fire safety: Self extinguishing VO-UL94
Colour: Red RAL3031
Threaded inserts: Galvanized steel
Finished Product
Max rated voltage: 1000VAC / 1500VDC
Working Temp. range: -40°C to +130°C
Test Standards
Mechanical & electrical: EN60664-1 & EN61439-1

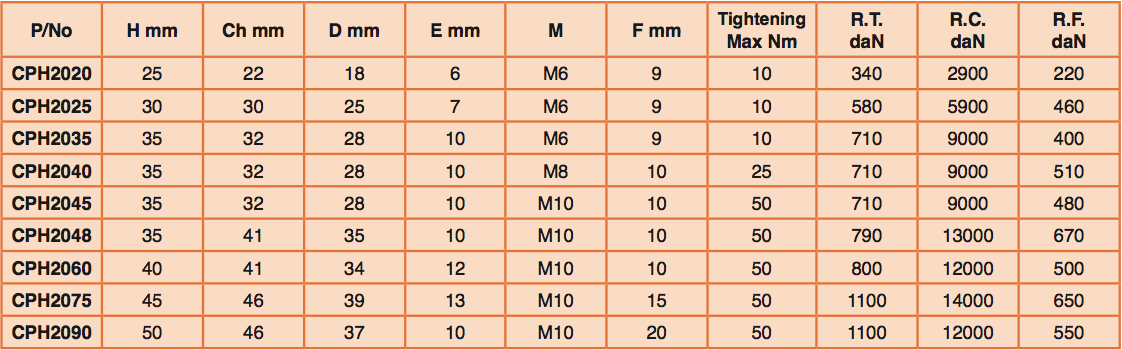

R.T. = Tensile strength
R.C. = Compressive strength
R.F. = Flexural strength
