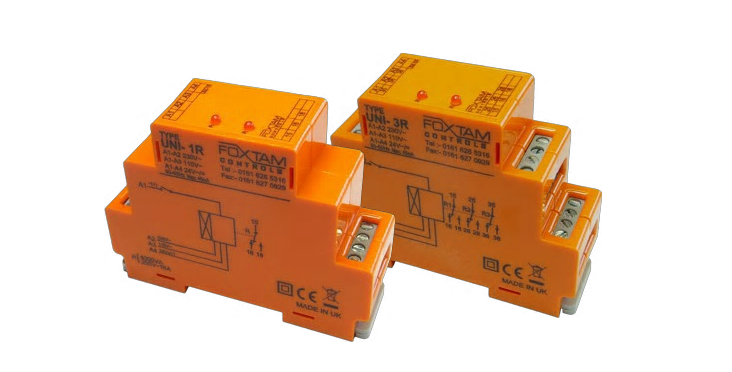

An attractive modern designed 16 Amp AC1 power relay in a din rail mounted modular style housing of 1.5 modules width (27mm). The relay features the facility of double deck terminals thus enabling the relay to be available also in both SPCO and 3PCO versions. Coil voltage is determined via the connection to different terminals. LEDs are fitted to indicate relay output status. All terminal details and information along with the CE mark is clearly marked on the sides of the housing.
Note: Whilst the UNI-3R is 3PCO it is not suitable for switching three phases.
Supply Voltage:
Coil Voltage:
A1 to A2 (230VAC)
A1 to A3 (110VAC)
A1 to A4 (24VAC)
A1- to A4+ (24VDC)
Max power consumption: 5VA / 2.8W
Insulation: 2.5KV 50Hz impulse
Relay outputs:
Output contacts: 16Amps/250V AC1
Max breaking capacity: 4000VA
Energisation time: <50mSec
Reset time: <50mSec
Mechanical life: 30 Million ops
Electrical life: 200K ops at max rated load
General:
Operating temperature: -20°C to +40°C
Storage temperature: -20°C to +60°
Max cable size: 2.5mm
CE marked: Yes
In accordance with:
EN61000-6-1: 2007
EN61000-6-3: 2007
EN61010-1: 2002
Housing material: Polycarbonate, Auto extinguishable to UL 94 V-0
